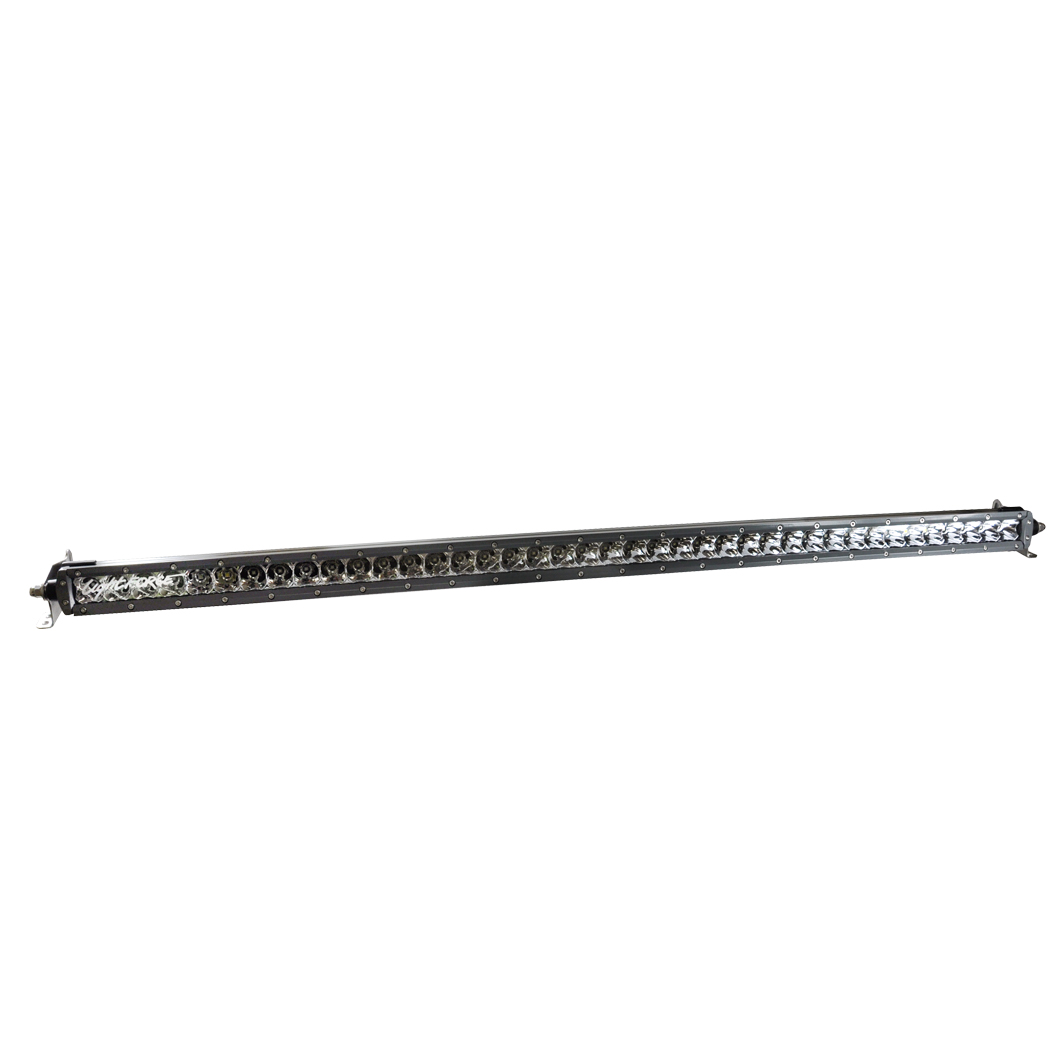

Lightforce 40 tum Single row Dual wattage LED bar

Beskrivning

LED-Ramp Lightforce

•Hard coated, scratch and high impact resistant polycarbonate lens
•Custom fabricated dual injected moulded strain relief connector, fitted to military
specification grade cable
•IP69K rating, dust tight and water proof (IP57/67/68/IP69K) to protect against
moisture / contaminant ingress (Genuine Gore® Protective Vents)
•Submersible to 3 meters / 9 feet
•Colour temp 5000k for reduced glare
•Over, under and reverse voltage protection
•Pulse width modulation thermal management circuitry
•Stainless steel mounting hardware, side bracket torx fixings & key
•Comprehensive wiring harness
•Broad operating voltage range of 10 ~ 36V DC
•Deutsch waterproof connectors
•RoHS certified
•3 year warranty
•5W German Osram LEDs (Dual Wattage 3W / 10W)
•LED lifespan: 50,000 hrs
•Input cable length: 450mm (17.72”)
•Operating temperature -40°C to 63°C
TECHNICAL SPECIFICATIONS
The Lightforce LED light bar range is rugged and impact resistant, featuring a hard
coated polycarbonate lens for durability and a waterproof rating to IP69K standard.
The light bar range utilises high output European LEDs tuned within the reflectors
to produce unparalleled performance in its class.
The new Lightforce range of dual wattage LED bars (XP Series) utilise 3W and 10W
LEDs in the one bar to produce increased light penetration for long range illumination
providing the ultimate in lighting performance.
Multiple mounting options are available and complete with a waterproof Deutsch
connector – including full wiring harness – the Lightforce LED light bar range delivers
powerful performance in a simple package.
KIT INCLUDES:
•1 x Lightforce LED light bar
•2 x Stainless steel brackets
•Stainless steel mounting hardware, side bracket torx fixings & key
•Full wiring harness (relay, switch connector)
•User instructions
